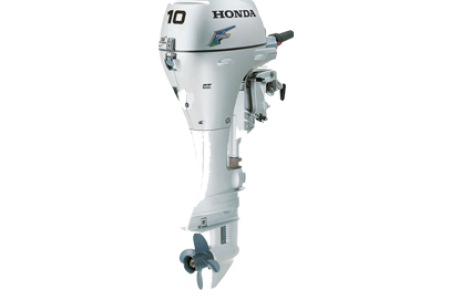

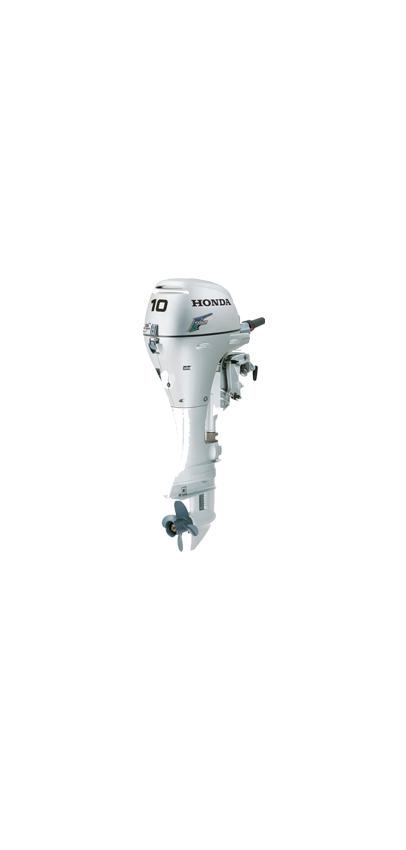

Outboard motor HONDA BF10
Brief description
- Capacity 222 cm3
- Power 9.9 hp
- Screw Size 9 1/4 x 9 inches
- (4-stroke)
- Weight 42 kg.
Specifications
Maximum power kW (HP) 7.4 (10)
Engine Type: four-stroke, SOHC
Engine capacity, cm3 222
The range of operating speed, rpm 5000 - 6000
Bore x stroke mm 58,0 x 42,0
Number of cylinders: 2
Valves per cylinder 2
The drive of valves: 1 camshaft
Intake system: 1 carburetor
Generator: 12 W 6 A, for models with
electrolaunch – 12 W 12 A
Weight, kg 47 (the lightest option)
Gear ratio: 2.33: 1
Tank capacity, l 12
Crankcase capacity, l 1
The capacity of the gearbox housing, l 0.29
Stated screw (Lop. x Dia. x Step), inch 4 x 9 1/4 x 8
Plug / gap: NGK CR5EH-9 / 0.8 - 0.9 mm or
DENSO U16FER9 / 0.8 - 0.9 mm
Motor rake: Manual/auxiliary cylinder/ electro-hydraulic lift
Deadwood length: S / L/ X (for the transom 381/508/
635 mm)
Motor Control: Manual or remote
(Models marked R)
Noise (ICOMIA 39-94): 80 dB, for models with control - 74 dB
Vibration (ICOMIA 38-94): 2.9 m / c2, for models with remote control -
not more than 2.5 m / c2
Possible models:
BF10 S (L/X) HU: Manual control and launch
BF10 S (L) HSU: Manual control, electrical start
BF10 S (L / X) RU remote control,
electric start
