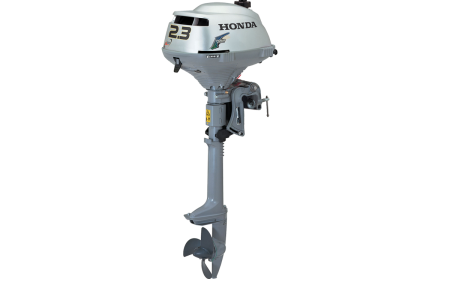

Outboard motor HONDA BF2,3
Brief description
- Engine capacity 57 cm3
- Power 2.3 hp
- Screw Size 7 1/4 x 4 3/4
- (4-stroke)
- Weight 13 kg.
Specifications
Maximum power kW (HP) 1.7 (2.3)
Engine Type: four-stroke, OHV,
forced
air cooling
Engine capacity, cm3 57.2
The range of operating speed, rpm 5000 - 6000
Bore x stroke mm 45,0 x 36,0
Number of cylinders: 1
Valves per cylinder 2
The drive of valves: cam follower
Intake system: 1 carburetor
Weight, kg 12.5(the lightest option)
Gear ratio: 2.42: 1
Tank capacity, l 1 (in-built)
Crankcase capacity, l 0.25
The capacity of the gearbox housing, l 0.05
Stated screw (Lop. x Dia.
x Step), inch 3 x 7 ¼ x 4 ¾
Plug / gap: NGK CR4HSB / 0.6 - 0.7 mm or
DENSO U14FSR-UB / 0.6 - 0.7 mm
Motor rake: Manual
Deadwood length: S / L (for the transom 381/508 mm)
Motor Control: Manual
Noise (ICOMIA 39-94): 82 dB
Vibration (ICOMIA 38-94): 6.5 m / c2
Possible models:
BF2.3 S (L) U: No clutch, gas bonnet
BF2.3 S (L) CU: With clutch, gas bonnet
BF2.3 S(L)HU: No clutch, gas on tiller
BF2.3 S(L)CHU: With clutch, gas on tiller
