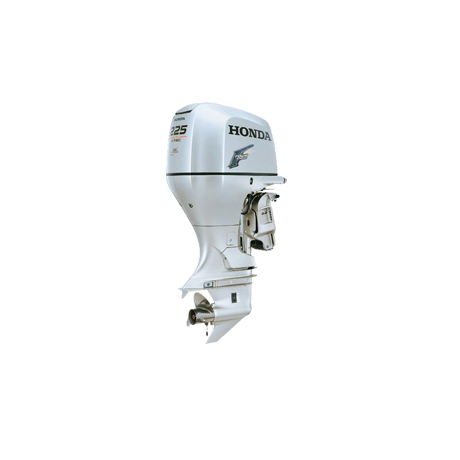

Outboard motor HONDA BF225

Brief description

Engine capacity 3471 cm3
Power 225 hp (165.5 kW)
Screw 3 or 4 blades (4-stroke)
Weight 267-272 kg.

Specifications

Maximum power, kW (hp) 165.5 (225)

Engine Type Four-stroke SOHC, EFI

Engine capacity, cm3 3471

Number of cylinders 60 ° V6

Weight 267 (lightest option)

Generator 12 B 60 A

Bore x stroke 89.0 x 93.0 mm

The gear ratio of 1.87: 1

Rake Electro-hydraulic lift

Deadwood length L / X / XX (for the transom 508/635/762 mm)

Engine control Remote, electrical start

Extra description

Powerful 225 strong BF225 outboard motor V6 is built on the scheme, which allows it to develop high torque. Generator 60A turned on if necessary reduces motor heating and allows you to keep the battery charged, even if it is connected to several energy consumers. Compact and intelligent system of two-stage intake increases the reliability and efficiency of the engine. Proprietary technologies Variable Valve Timing and Lift Electronic Control, used in the most powerful outboard motors from Honda, allow it to develop high power and torque while maintaining profitability. In this outboard motor engine the components of car Honda Odyssey and Honda Pilot have been used, which once again proves its high reliability.
