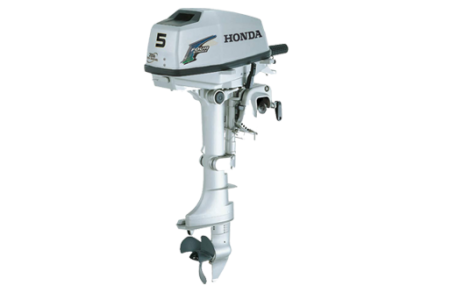

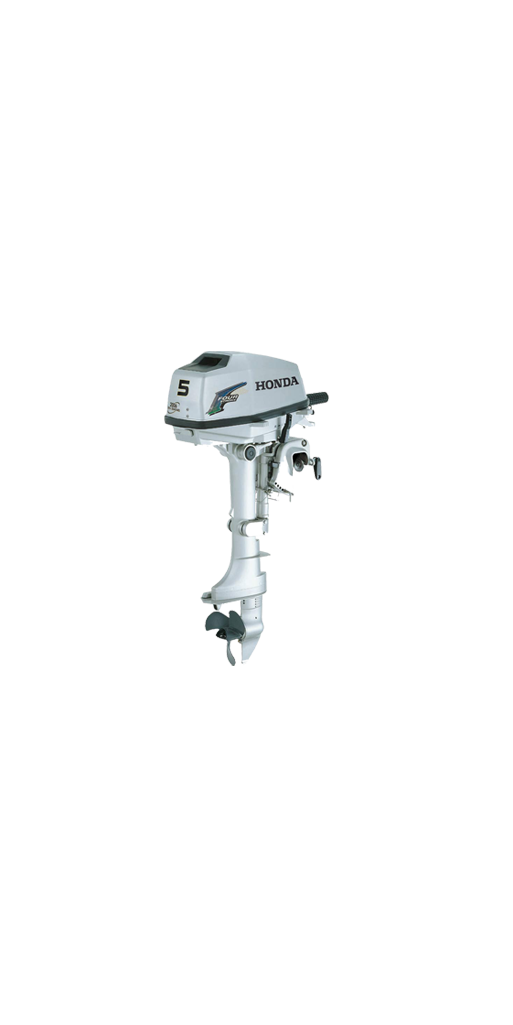

Outboard motor HONDA BF5
Brief description
- Capacity 127 cm3
- Power 5 hp
- Screw Size 7 7/8 x 6 2/3 inches
- (4-stroke)
- Weight 27 kg.
Specifications
Maximum power kW (HP) 3.7 (5)
Engine Type: four-stroke, OHV
Engine capacity, cm3 127
The range of operating speed, rpm 4000 - 5000
Bore x stroke mm 60,0 x 45,0
Number of cylinders: 1
Valves per cylinder 2
The drive of valves: 1 cam follower
Intake system: 1 carburetor
Generator: 12 W 3 A (for model BF5S(L)BU)
Weight, kg 27 (the lightest option)
Gear ratio: 2.08: 1
Tank capacity, l 12
Crankcase capacity, l 0.55
The capacity of the gearbox housing, l 0.1
Stated screw (Lop. x Dia.
x Step), inch 3 x 200 x 190
Plug / gap: NGK BPR5ES / 0.7 - 0.8 mm or
DENSO W16EPR-U / 0.7 - 0.8 mm
Motor rake: Manual
Deadwood length: S / L (for the transom 381/508 mm)
Motor Control: Manual
Noise (ICOMIA 39-94): 79 dB
Vibration (ICOMIA 38-94): 4.6 m / c2
Possible models:
BF5 S (L) U: None generator and rectifier
BF5 S (L) BU: With the generator 3 A and a rectifier
