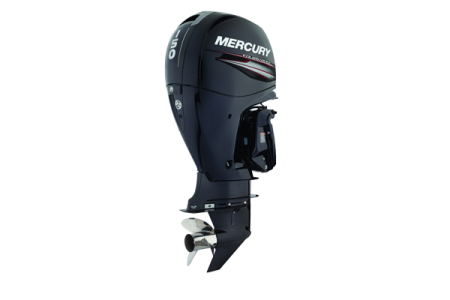

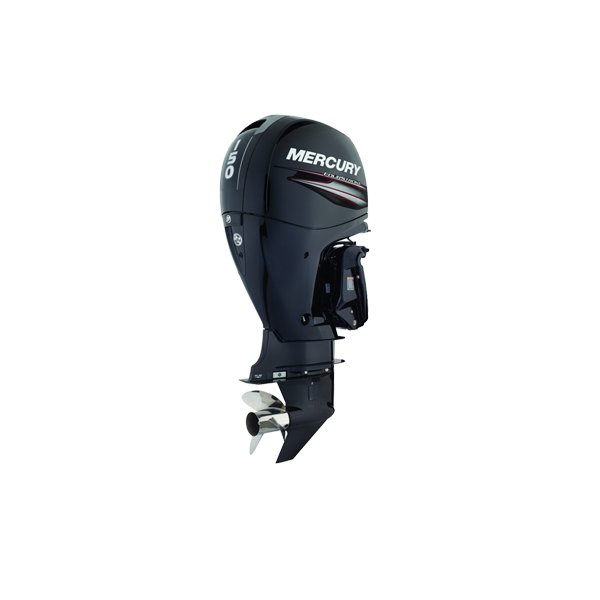

Outboard motor Mercury F 150 EFI
Brief description
- Engine capacity 1732 cm3
- Power 150.0 hp
- Screw size Look guide to the selection of screws
- (4-stroke)
- Weight 206 kg.
Specifications
- Maximum capacity of 150/110
- Motor control system Remote
- Trim adjustment: Electric hydraulic in standard specification
- The length of the drive shaft, mm long 508
- Warning System Guardian
- Fuel tank, l -
- Dry weight 206 kg
- Standard screw Look guide to the selection of screws
- Exhaust system through the screw
- The generator current / power 60A / 756Vt with belt drive
- Timing system 8-valve (SOHC)
- Gear Forward-neutral-back
- The gear ratio of 1.92: 1
- Maximum speed 5000-5800
- The number of engine cylinders Inline 4-cylinder
- Capacity motor cm3: 3000
- Bore / Stroke mm 102x92
- Intake system Tuning intake manifold with swirl channels
- Lubrication to the motor: Wet sump, pressure lubrication system
- Cooling: Water + thermostat
- Ignition: SmartCraft ECM Digital inductive
- Starting: Electrical starting
- SmartCraft System: Option
