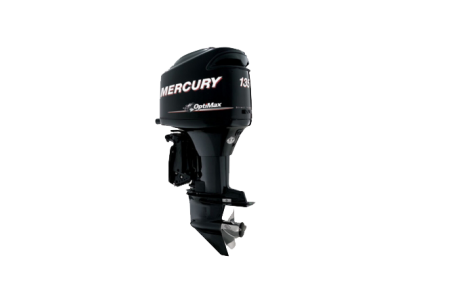

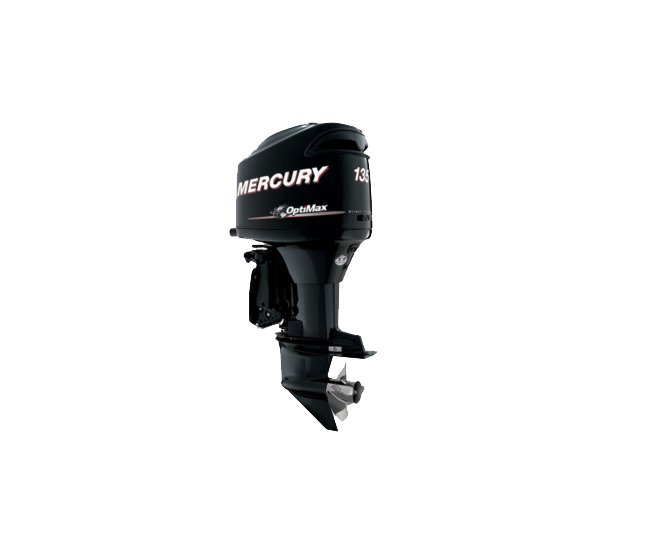

Outboard motor Mercury 135 L / XL SWB OptiMax
Usual fitting:
- Power: 100.7 KW
- Maximum number of revolution per minute: 5000- 5600
- Cylinder (s): V-6 (60°)
- Capacity, cm3: 2507
- Bore / Stroke: 89 mm x 67 mm
- Cooling: Water + thermostat + pressure regulator
- Ignition: inductive with an electronic control unit (PCM 555)
- Running: Electric
- Gear ratio: 2.00: 1
- Switch position Transmission: P.h.-N.-Z.h.
- Control System: Remote control panel
- Generator system: 60 A (756 W) with a belt-driven generator and a voltage regulator
- Trim adjustment system: Standard electro-hydraulic
- Fuel tank: Selective
- Requirements for fuel: Unleaded 90 RON minimum
- Weight: 195 kg
- Recommended height of the transom: Long 508 mm XL 635 mm
- Valve System: The two-stage direct fuel injection
- Exhaust system: Through screw
- Oil Injection System: Multipoint control with electronic filing
- Left rotation: No XL: Yes
Brief description
- Engine capacity 2507 cm3
- Power 135.0 hp
- (2-stroke)
- Weight 195 kg.
