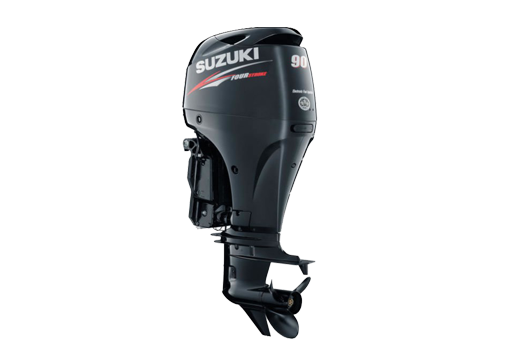

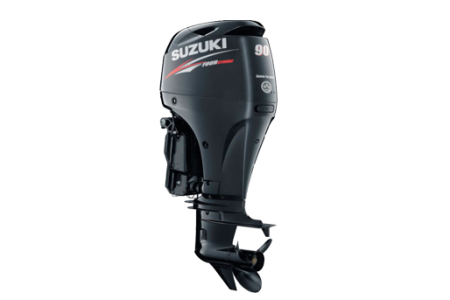

Outboard motor Suzuki DF90A
Brief description
- Engine capacity 1502 cm3
- Power 90 hp
- Propeller Size -
- (4-stroke)
- Weight 158 kg.
Specifications
Power: 90 hp
Stroke: four-stroke, SOHC, EFI
Weight: 155.0 kg
Capacity: 1502 cm3
Number of cylinders: 4
The maximum number of revolutions per minute: 5300 - 6300
Bore / stroke: 75.0 x 85.0 mm
Intake system: Injection (EFI)
Generator power: 12V, 27A
Gear ratio: 2.59: 1
Crankcase capacity, l: 4.2
The capacity of the gear housing: 850 cm3
State screw (Blade x Diameter x Step), inch: 3 х 13¼ x 21
Propeller selection step, inch: 13 - 24
Plugs / gap: NGK DCPR6E / 0,7 - 0,8 mm
Battery required power: L (for the transom 508 mm)
Motor rake: Electrohydraulic
Motor Control: Remote electrical start
